High Output Load Ability Modular Online UPS System N+X redundancy With Pure sine wave output voltage

Name: High Output Load Ability Modular Online UPS System NX redundancy With Pure sine wave output voltage
Brand: CONSNANT
Price: 1 USD

Wholesale High Output Load Ability Modular Online UPS System N+X redundancy With Pure sine wave output voltage from china suppliers

Brand Name : CONSNANT

Model Number : CNM330 -300K

Certification : CE, ISO9001, ISO14001

Place of Origin : Shenzhen, China

MOQ : 1 Unit

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 500 pieces per month

Delivery Time : 20days after receiving 30% deposit

Packaging Details : Wooden Case

Input voltage : 380V/400V/415V (South American 208V option ，derating use）

THDi : THDi<3%

P.F. : Full load >0.99 half load>0.98

Application : Backup power

Output Capacity : Large type

Communication ports : RS232 , RS458 , Dry contact , SNMP card , EPO , generator port

Contact Now

180KVA High Output Load Ability Modular UPS System With High Output PF

Brief Information:

CNM330 series is modular online UPS for sensitive equipment. The single cabinet power rating covers from 30KVA to 300KVA which delivers the best of combination of reliability, hot-swappable and flexibility. With the latest IGBT three-level technology and DSP control, CNM330 achieves a high input power factor, low THDi Modular design with N+X redundancy and online hot swapping ,easy to expand the capacity Full DSP control of high stability, reliability and safety Integrated IGBT module with improved performance and reduced size

Advantages:

Hot-swappable
High efficiency
Front access
Small footprint
Wide input voltage range
High power density
Low input THDI and unity PF
Pure sine wave output voltage
High EMC performance
Display language variety
High overload capacity
Battery recharge faster
Low audible noise
Self-Diagnosis
Record data before failure
Auto-calibration by Parametric set software
Download history log in a easily readable
Battery sharing
Intelligent battery management
Self aging

Wide Input voltage range

High Output Load Ability Modular Online UPS System N+X redundancy With Pure sine wave output voltage

Application:

Application IDC(Internet Data Center)

Computing center

ISP (Internet Service Provider )

Telecom , Finance, bank and securities , Tax

Hospital system , industrial automation

Precision equipment, etc.

Specication:

model	CNM330
Input voltage	380V/400V/415V (South American 208V option ,derating use)
Input Frequency	50/60HZ
THDI	THDI<3%
Power Factor	Full load >0.99 half load>0.98
Battery voltage	±240VDC(default) 12V battery 30-40PCS can be choose
Bypass overload capacity	Long term at 135% rated load, 150%<load<180% 10min , Load>1000% 100ms
Output voltage	380/400V415VAC 3-phase 4-wire
Voltage Accuracy	±0.5% (balanced load) ±1% (unbalanced load)
Power factor	0.9 / 1
Overload capacity	110% 1H , 125% 10mins , 150% 1min , >150% 200ms
Communication ports	RS232 , RS458 , Dry contact , SNMP card , EPO , generator port
System efficiency	>96% at load above 50% , >95% at load above 25%

(Optional South America 208V must be derating use)

High Output Load Ability Modular Online UPS System N+X redundancy With Pure sine wave output voltage

Product Tags:

redundant ups power supply

commercial ups battery backup

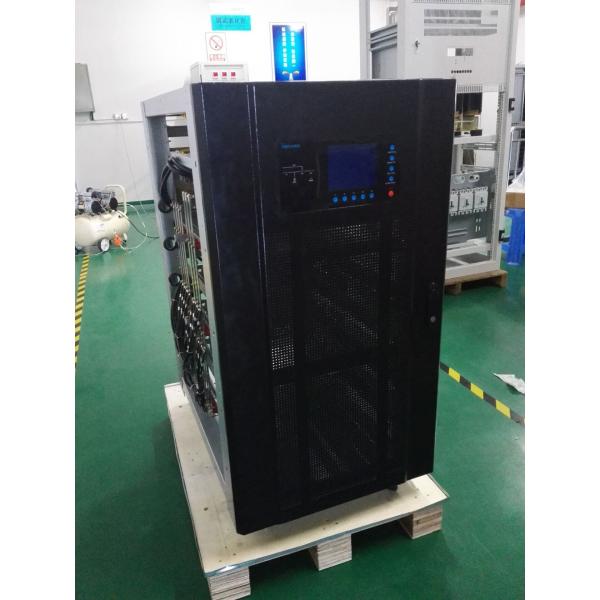

High Output Load Ability Modular Online UPS System N+X redundancy With Pure sine wave output voltage Images
